PRODUCT

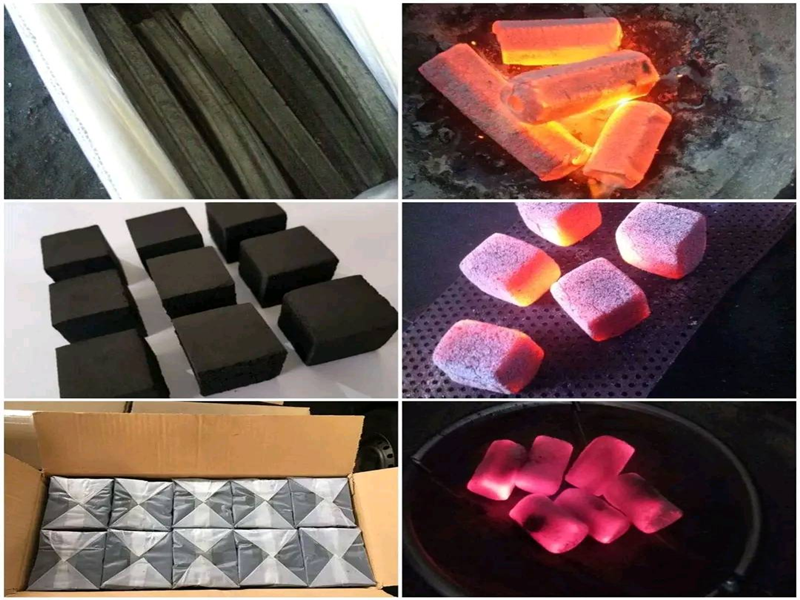

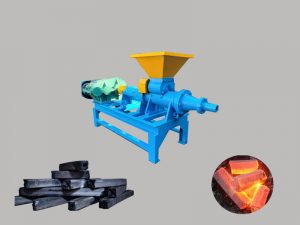

Charcoal briquette machine (also called coal extruder machine ) is a coal rod forming equipment that uses the principle of screw extrusion to compress the prepared pulverized charcoal and coal powder into a predetermined shape with a certain strength.the charcoal is used for domestic cooking, or bbq heating etc.

we feed in mixed charcoal powder  with binders, then forming the shape you want,The mold is changeable, you can make it into the shape you want, we can also customize the size according to your requirements, there are cylindrical, hexagonal, square with holes, small particle columnar, etc., the charcoal is forming with high pressure, so the density is pretty high to make sure it can burn enough time when you are using.

Principle:

The working principle of the charcoal briquettes machine ,The rotating impeller inserts the original carbon powder from the feeding port, and pushes the carbon powder forward. The original carbon powder is gradually compressed, and the particles are close together, and at the same time, relatively large agitation and mixing are generated.

At this time, there is strong friction and shear between the original toner particles, between the particles and the blades, and at the same time, under the action of heat generation, the temperature of the original toner powder rises, the moisture and the binder are more uniform, and the plasticity of the toner powder is improved. Also greatly increased, and then through the control of the mold cone, the carbon powder particles are compressed more tightly, and then pressed into the straight part of the mold, and the coal rod machine is formed.

and also, the charcoal forming machines has bbq charcoal machines and shisha charcoal press machines. you can see how our charcoal extruder machine works.

1,One machine with multiple functions, producing various shapes by changing molds

2，The machine technology is mature, the operation is simple, and the production is efficient

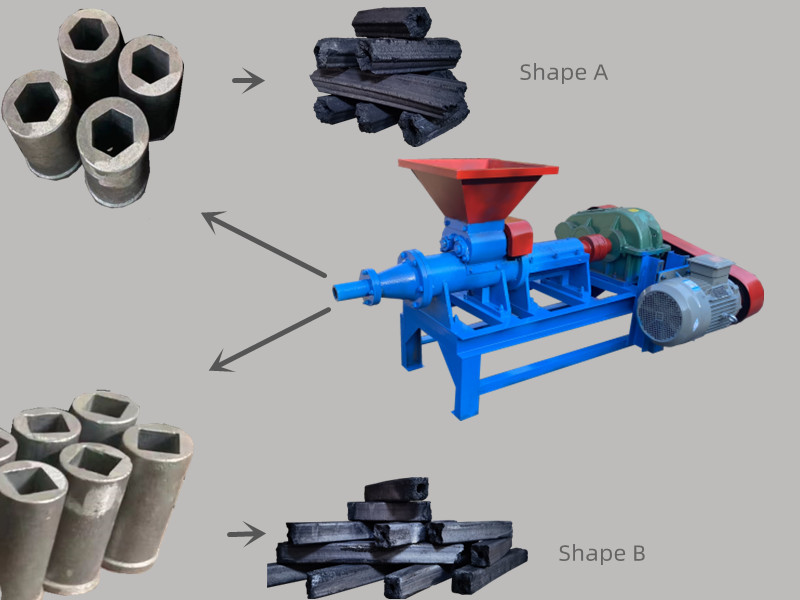

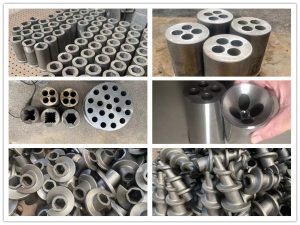

3,The mold is changeable, you can make it into the shape you want, we can also customize the size according to your requirements, there are cylindrical, hexagonal, square with holes, small particle columnar, etc.

•
