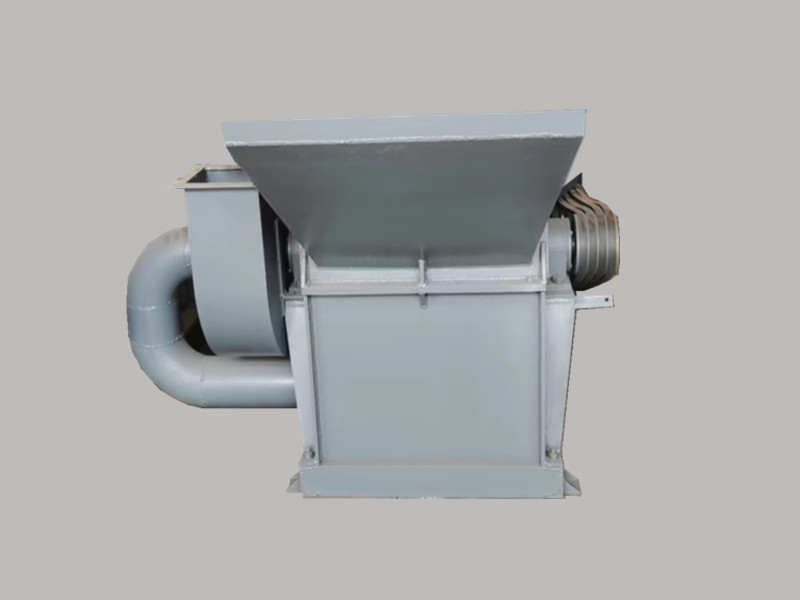

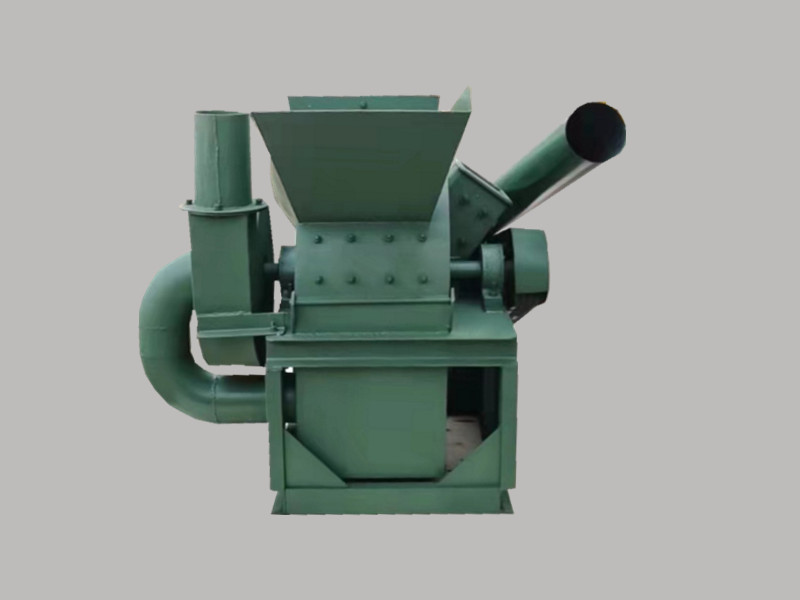

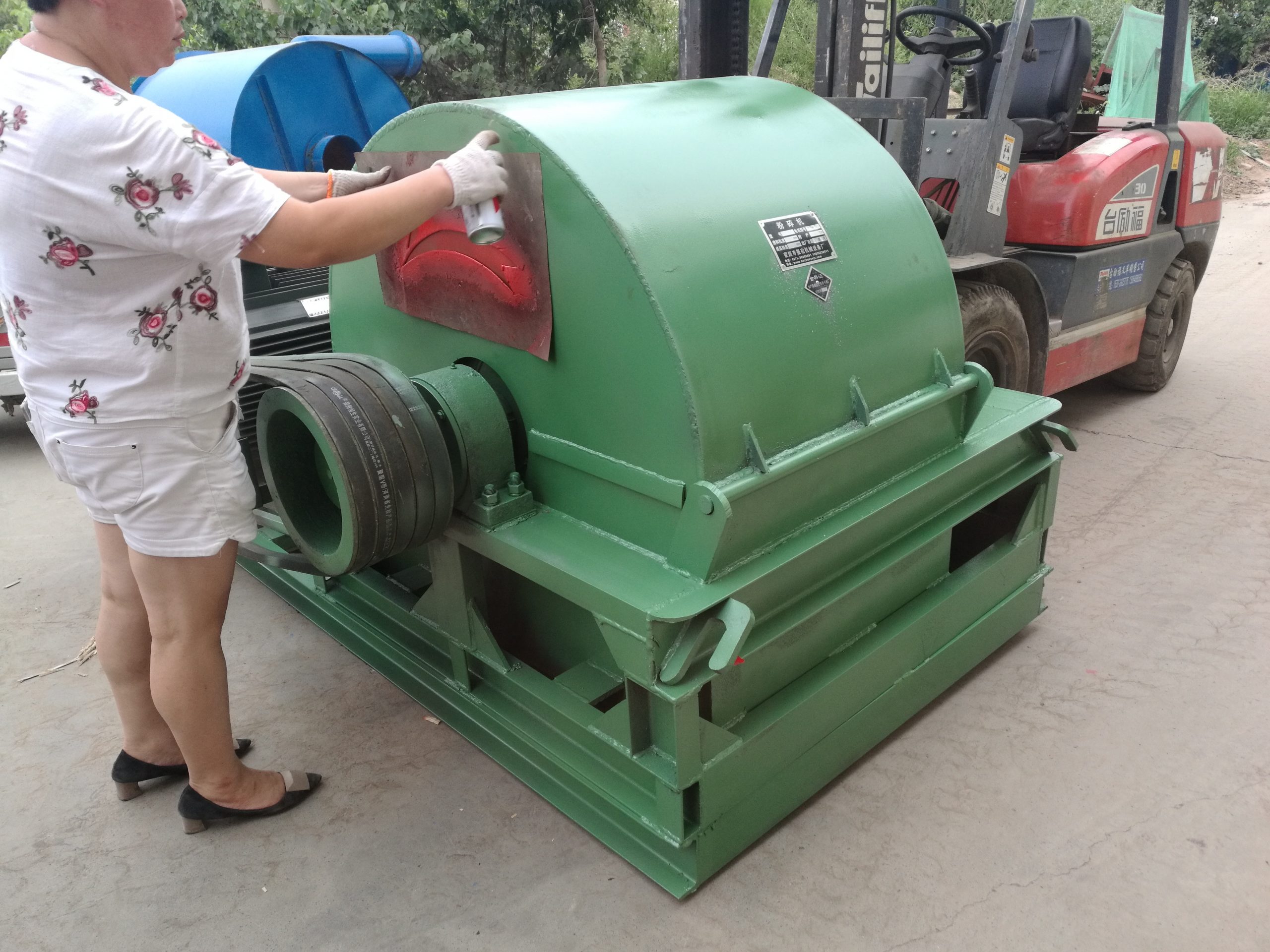

Wood crusher
Model:DW600
Dimension: 1.2*1.0*2.5m
Motor: 37kw
Weight: 600 kg
The wood crusher is used for crushing straw, peanut shells, branches, and bark, and it is a supporting equipment for small charcoal machines. The straw pulverizer can be used as a multifunctional pulverizer. The equipment is equipped with a dust suction device and has no powder pollution. It has the characteristics of low temperature, low noise and high efficiency
The wood crushers can be equipped with a motor, a diesel engine or a 30-50 horsepower tractor. The main machine is composed of a feeding mechanism, a cutting mechanism, a throwing mechanism, a transmission mechanism, a walking mechanism, a protective device and a frame. It has the characteristics of reasonable structure, convenient movement, automatic feeding, safety and reliability.
Its components are as follows:
1) Feeding mechanism: mainly composed of feeding table, upper and lower knives, fixed blade, and fixed blade support seat.
2) Guillotine cutting and throwing mechanism: mainly composed of moving knife, cutter head, locking screw and so on.
3) Transmission mechanism: mainly composed of V-belts, transmission shafts, gears, universal joints, etc.
4) Walking mechanism: mainly composed of casters.
5) Protective device: consists of a protective cover
| QTY | SPECIFICATIONS |
|
1
|
Name:hammer mill DW 600 （heavy model high speed） |
| Feedport size: 600*220mm | |
| Qty of Blades: 48pieces | |
| Rotate speed : 3412r/min | |
| Blades size: 60*180*8mm | |
| Output: 1000kg/h(minimum) | |
| Motor： 37kw | |
| Weight: 1.5t | |
| Max diameter:38mm | |
| Max filling thickness:22mm | |
| Max thickness of the tablets:14mm | |
| Rotation speed:5-17r/min 21piece/ rotation | |
| Motor: 7.5kw (8G) | |
| Weight: 1800kg | |
| Dimension: 1100*940mm*1780mm | |
| Mould:40mm (extral mould ) +two tables for free |
