DWL450 Automatic L-shaped sealing and cutting machine +DW4522 shrinking machine
Model: DWL450 +DW4522
Power:3kw
Packing speed :15-30pcs/min
Weight: 280kg

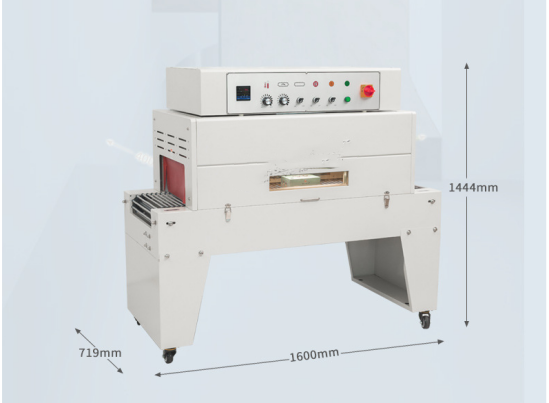

Automatically sealing and cutting machine with shrinking machine is used for adding films on the box then shrink it with high temperature, it is part of the packing machines in our charcoal machine plant, for the last step, then we packed them into cartons for loading. but packing machine is also used for all kinds of boxs filming, any kinds of box you want to add films on and shrink it, this machine is ok for that.

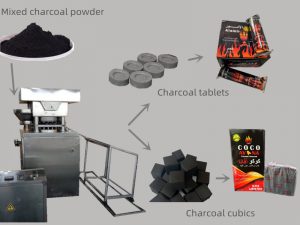

in our plant, the shishs tabelts box is filmed after this products, as belows you can see the shisha tablets boxs made by the rotating shisha tablets machines.

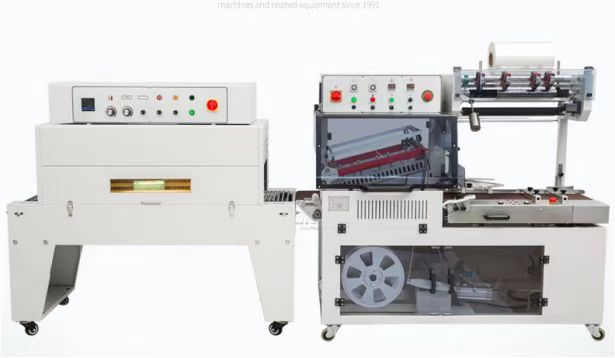

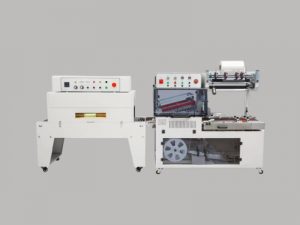

the details of the sealing and cutting machine with shrinking machine

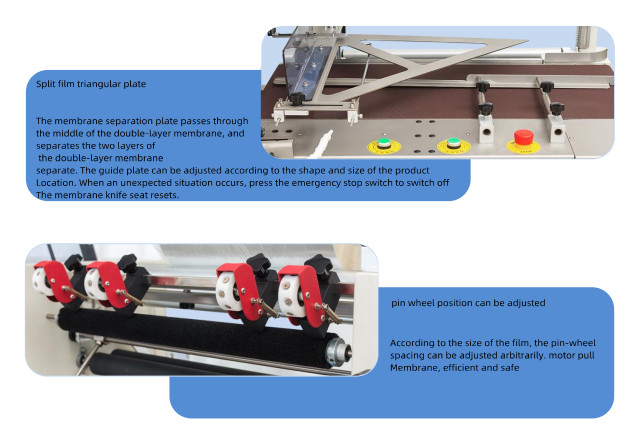

the sealing and cutting machine for packing machines
The sealing and cutting knife is treated with special alloy material sprayed with Teflon, no sticky
film, and the seal is firm
The sealing frame is made of high-quality alloy steel, and the frame is not easy to deform
A full set of high-speed, unmanned automatic operation
Easy to change and adjust the product size, easy to operate
With protection function to prevent accidental cutting of the package and protect the safety of the operator
| Products model | DWL450 |
| Voltage and herz | AC220v 50Hz |
| Power | 3kw |
| Sealing temperature | It is related to the thickness of the film and the film temperature, generally 180°C-220°C |
| Sealing time | 0.2-1.2sec |
| film thickness | 0.012-0.15mm |
| Packing speed | 15-30pcs/min |
| working pressure | 0.5Mpa |
| Packaging Materials | POF |
| Maximum package size | L+2H≤500 W+H≤400 H≤150 |
| Dimensions | 1630*900*1470mm |
| Weight | 280KG |
If you need our products please write down any questions, we will reply as soon as possible.
